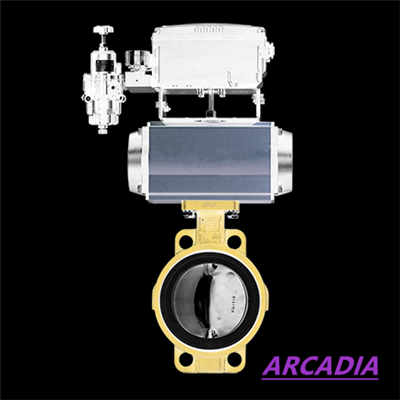

进口双瓣调节蝶阀美国阿卡迪亚品牌

进口双瓣调节蝶阀Product Description:

The utility model comprises a valve body, a valve shaft, a valve disc and a driving device. A diaphragm is arranged in the valve body to separate the valve body into two semicircular chambers. Each semicircular chamber is provided with a valve disc. The valve disc is connected with the valve body through two valve shafts. At least one valve shaft of each valve disc is connected with the driving device. The center line and both sides of the surface of the valve disc are provided with guide plates in the same direction with the fluid direction. Adjust different flow rates under different working pressures, with high adjustment accuracy and equal percentage adjustment characteristics.

进口双瓣调节蝶阀characteristic:

The valve can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil products, liquid metal and radioactive media. It mainly plays the role of cutting off and throttling on the pipeline. The opening and closing part of butterfly valve is a disc-shaped butterfly plate, which rotates around its own axis in the valve body, so as to achieve the purpose of opening, closing or adjustment.

进口双瓣调节蝶阀Principle:

The utility model relates to a double disc regulating butterfly valve, which comprises a valve body, a valve shaft, a valve disc and a driving device. A diaphragm is arranged in the valve body to separate the valve body into two semicircular chambers, each semicircular chamber is provided with a valve disc, the valve disc is connected with the valve body through two valve shafts, at least one valve shaft of each valve disc is connected with the driving device, and the center line and both sides of the surface of the valve disc are provided with guide plates in the same direction with the fluid. The two valve discs rotate through a driving device to make the two valve discs open or closed, so as to achieve the purpose of regulating the medium.

（仅供参考）
