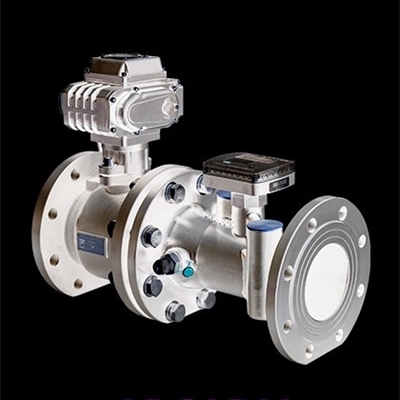

进口高压电磁流量计美国阿卡迪亚品牌

进口高压电磁流量计Product Description:

The high-pressure liner is a cylinder with a central hole, and a through hole is arranged in the middle of the high-pressure liner through the central hole; At least one side of the through hole of the high-pressure liner is provided with a section of sealing thread, and at least one side of the two sides of the sealing thread is provided with a high-pressure sealing ring; Both ends of the high-pressure liner are provided with a lip high-pressure sealing ring. The high-pressure liner is composed of multiple piston sealing structures and port plane sealing structures. There are multiple high-pressure sealing structures in total, which completely eliminates the problem that the fluid will penetrate along the compression rings at the ports on both sides, or burst into the gap between the high-pressure liner and the high-pressure electromagnetic flowmeter body, and squeeze and spread towards the middle high-pressure electrode, and finally overflow or eject at the high-pressure electrode port; The insulation between the high-voltage electrode and the high-voltage electromagnetic flowmeter body and the sealing of the measured high-voltage pressurized fluid are completely guaranteed, so as to ensure the normal operation, accuracy and safety of the high-voltage electromagnetic flowmeter.

进口高压电磁流量计characteristic:

The sealing material is integrated with the high-pressure electromagnetic flowmeter body. The disadvantage is that the overall high-voltage lining and its material are used as insulation, and the elasticity of the material is poor, the deformation is small, and it is OK under the low-voltage working state, but under the high-voltage working state, the performance is poor, especially under the high-voltage working state, repeated pressurization and pressure relief are very easy to produce fatigue deformation and loss of elasticity, resulting in seal failure. There will be a gap between the overall high-voltage lining and the high-voltage electromagnetic flowmeter body

进口高压电磁流量计Principle:

The sealing thread is provided with a sealing material between the threads, and the sealing material protrudes from the tooth height of the thread; The high-pressure sealing ring is arranged in the groove on the high-pressure liner wall, and the high-pressure sealing ring protrudes from the high-pressure liner wall surface; The lip high-pressure seal ring is arranged in the lip at both ends of the high-pressure liner, and the lip high-pressure seal ring protrudes from the end face of the high-pressure liner.

（仅供参考）
