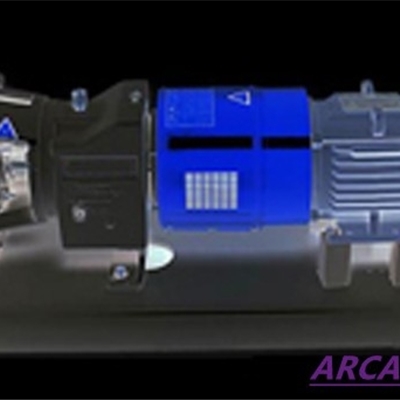

进口高温高压磁力循环泵美国阿卡迪亚品牌

进口高温高压磁力循环泵description:

The output end of the motor is connected with the first outer magnetic base through a coupling, and one end of the first outer magnetic base is provided with a second outer magnetic base, the inner part of the first outer magnetic base is provided with a deep groove ball bearing, a plug and a first O-ring, and one end of the plug is connected with the first outer magnetic base through a deep groove ball bearing, and one end of the plug is sleeved with a first O-ring, and the inner part of the second outer magnetic base is provided with an outer magnet, The inner magnet cover and the inner magnet are arranged inside the outer magnet, and the inner magnet cover is located between the inner magnet and the outer magnet. The upper fixed plate of the motor, the bottom cover of the outer magnetic base, and the lower fixed plate of the motor used in this kind of high-temperature and high-pressure magnetic circulating pump are made of aluminum alloy, which can achieve the overall lightweight and anti-corrosion effect of the pump body. The outer magnet and the inner magnet are made of cedar cobalt, which can avoid "demagnetization" and other undesirable phenomena in use.

进口高温高压磁力循环泵characteristic:

Magnetic pump is a branch of the field of water pump, which is a new product that applies the working principle of permanent magnetic coupling to centrifugal pump. Magnetic pump consists of pump, magnetic driver and motor. The magnetic driver of the magnetic pump is composed of an external magnetic rotor, an internal magnetic rotor and a non magnetic insulating sleeve. When the motor drives the external magnetic rotor to rotate, the magnetic field can penetrate the air gap and non-magnetic substances, and drive the internal magnetic rotor connected to the impeller to rotate synchronously, so as to realize the non-contact and synchronous transmission of power, and transform the dynamic seal structure that is easy to leak into a static seal structure that has zero leakage. As the sliding bearing of the magnetic pump is lubricated by the medium conveyed, different materials shall be selected to make the bearing according to different media and working conditions.

进口高温高压磁力循环泵Principle:

The high-temperature and high-pressure magnetic circulating pump includes: deep groove bearings are sleeved on both ends of the lower drive shaft, one side of a deep groove bearing is provided with a gasket, the outer side of the deep groove bearing is provided with a lower cylinder, and the lower cylinder is connected with the lower drive shaft through the deep groove bearing; One end of the lower barrel is provided with a barrel cover, and the connection between the lower barrel and the barrel cover is provided with a washer, and the barrel cover bolt and washer are connected with the lower barrel; The other end of the lower cylinder is threaded to the upper cylinder, and the upper cylinder is connected with the lower drive shaft through a deep groove bearing; The connection between the motor and the first outer magnetic base is provided with an upper fixing plate of the motor. Four motor support rods are inserted in the upper fixing plate of the motor. The other end of the four motor support rods is connected with a lower fixing plate of the motor. The upper fixing plate of the motor, the first outer magnetic base, the second outer magnetic base, the bottom cover of the outer magnetic base and the lower fixing plate of the motor are made of aluminum alloy, so that the overall lightweight and anti-corrosion effect of the pump can be achieved, The working pressure range of this high temperature and high pressure magnetic circulating pump is 0 ? 40MPa, and the working temperature range is 0 ℃~200 ℃. At the same time, TC4, 304, 316L stainless steel is used, and

（仅供参考）
