产品特点 Product features

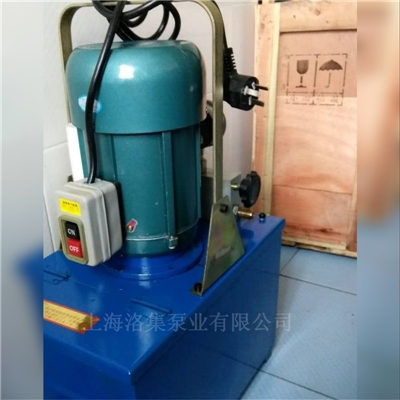

DSY系列电动试压泵具有良好的操作测试性能，该产品携带方便，输出稳定，外形美观，是管道施工的理想设备。
DSY series of electric hydraulic test pumps are capable of favorable property of operation tests, featuring portability, reliable output and attractive appearance. Under the circumstances, they are ideal for pipeline construction.
技术参数 Technical parameters
| 型号 | 压力(Mpa) | 电压V | 功率(KW) | 流量 | 毛重(Kg) | 尺寸(mm) |
| Model | Pressure | Voltage | Power | L/H | G.W. | Meas |
| 3DSY-25 | 0-2.5MPa | 220/380V | 0.75KW | 360L/H | 24 | 380*250*560 |
| 3DSY-40 | 0-4.0MPa | 220/380V | 0.75KW | 360L/H | 24 | 380*250*560 |
| 3DSY-60 | 0-6.0MPa | 220/380V | 0.75KW | 360L/H | 24 | 380*250*560 |
| 3DSY-80 | 0-8.0MPa | 220/380V | 0.75KW | 360L/H | 24 | 380*250*560 |
| 3DSY-100 | 0-10MPa | 220/380V | 0.75KW | 360L/H | 24 | 380*250*560 |
| 配件编号 | 配件名称 | 规格 | 材质 | 单位 | 定性 | 价格(元) | 库存 | 供货期 |
|---|
